Exposed Fastener Panel / Thru-Fastened Panel

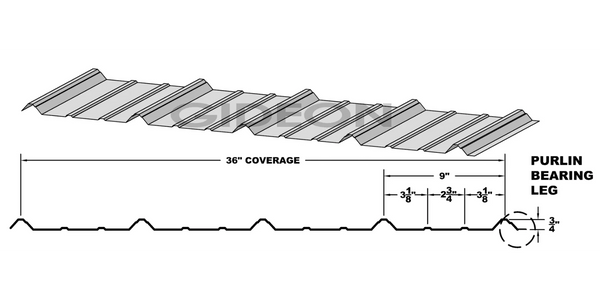

Gideon Tuff-Rib AG
- Major ribs are 3/4" tall, 9" on-center, 36" coverage width.
- Two minor ribs are equally spaced between major ribs. Strengthening rib on major rib.
- Siphon Groove feature creates drain channel for added protection against leaks and increased Weather-Tightness.
- Purlin bearing leg feature on under-lap side of panel.
- Enhanced Overlap Leg feature allows for increased weather-tightness. Most other manufacturers do not have this feature.
- 26 & 24 gauge ▪ Prepainted ▪ Galvalume ▪ Cut-To-Length
- 3:12 min slope.
- UL Rated: impact resistance, fire resistance and wind uplift.

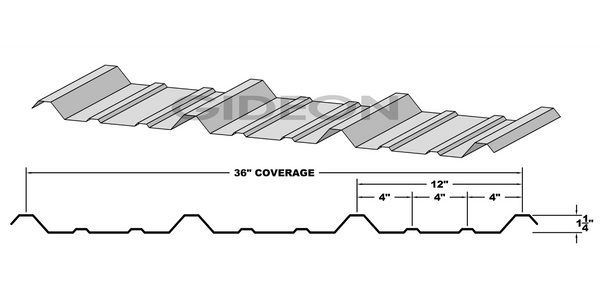

Gideon R-Panel
- Major ribs are 1-1/4" tall, 12" on-center, 36" coverage width.
- Two minor ribs are equally spaced between major ribs.
- Enhanced Overlap Leg feature allows for increased weather-tightness. Most other manufacturers do not have this feature.
- 26 & 24 gauge ▪ Prepainted ▪ Galvalume ▪ Cut-To-Length
- 1:12 min slope with continuous tape sealant on sidelaps.
- UL Rated: impact resistance, fire resistance and wind uplift.
Gideon PBR
- Major ribs are 1-1/4" tall, 12" on-center, 36" coverage width.
- Two minor ribs are equally spaced between major ribs.
- Purlin bearing leg feature on under-lap side of panel. PBR stands for Purlin Bearing Leg R-Panel. This is not a necessary feature, but is helpful when installing #14 x 7/8 screws in the panel lap.
- Enhanced Overlap Leg feature allows for increased weather-tightness. Most other manufacturers do not have this feature.
- 26 & 24 gauge ▪ Prepainted ▪ Galvalume ▪ Cut-To-Length
- 1:12 min slope with continuous tape sealant on sidelaps.
- UL Rated: impact resistance, fire resistance and wind uplift.
Gideon 5-V Panel
- Major ribs are 1/2" tall, 24" coverage width standard.
- One single rib centered between double rib on each side of panel.
- Purlin bearing leg feature on under-lap side of panel.
- 26 gauge ▪ Galvalume ▪ Cut-To-Length
- Other gauge and Prepainted available (inquire).
- 3:12 min slope.
- UL Rated: impact resistance, fire resistance and wind uplift.
7.2 Panel
- Major ribs are 1-1/2" tall, 7.2" on-center, 36" coverage width.
- Smooth surface, no minor ribs or striations.
- 26 & 24 gauge ▪ Prepainted ▪ Galvalume ▪ Cut-To-Length
- 1:12 minimum on slope with continuous tape sealant on sidelaps.

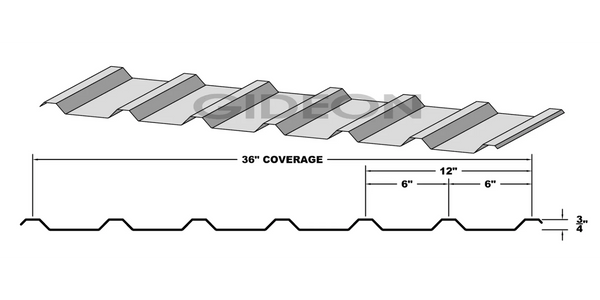

U-Panel
- Major ribs are 3/4" tall, 6" on-center, 36" coverage width.
- Smooth surface, no minor ribs or striations.
- 26 gauge ▪ Prepainted ▪ Galvalume ▪ Cut-To-Length
- 2:12 minimum on slope with continuous tape sealant on sidelaps.

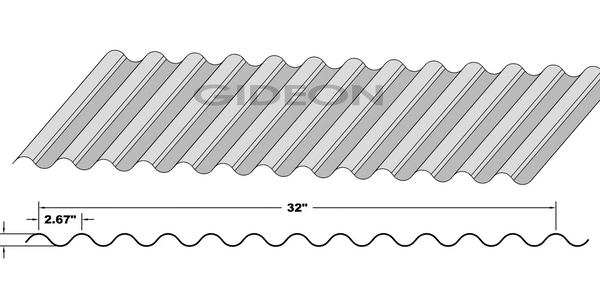

Corrugated 2-5/8"
- Major ribs are 7/8" tall, 2.67" on-center, 32" coverage width.
- 26 & 24 gauge ▪ Prepainted ▪ Galvalume ▪ Cut-To-Length
- 1:12 minimum on slope with continuous tape sealant on sidelaps.
Corrugated 2-1/2"
- Major ribs are 1/2" tall, 2-1/2" on-center, 24" coverage width.
- 26 & 29 gauge ▪ Galvalume ▪ Galvanized ▪ Cut-To-Length
- 3:12 minimum on slope with continuous tape sealant on sidelaps.
Corrugated 1-1/4"
- Major ribs are 1/2" tall, 1-1/4" on-center, 24" coverage width.
- 26 & 29 gauge ▪ Galvalume ▪ Galvanized ▪ Cut-To-Length
- 3:12 minimum on slope with continuous tape sealant on sidelaps.
