standing seam
G100s™
G100s™
G100s™
a.k.a. 1" Snap Lock
Major ribs are 1" tall.
12" or 16" nominal coverage width.
No clip. Uses slotted Fastener Flange.
Solid decking substrate required.
3:12 minimum slope.
UL Rated for Impact, Fire and Wind.
G150s™
G100s™
G100s™
Snap Lock.
Major Ribs are 1-1/2" tall.
12" or 16" nominal coverage width.
Uses a fixed clip.
Solid decking substrate required.
3:12 minimum slope.
UL Rated for Impact, Fire and Wind.
G450s™
G100s™
G450s™
Snap Lock.
Major Ribs are 1-1/2" tall.
12" or 16" nominal coverage width.
Uses half as many fixed clips vs G150s.
Solid decking substrate required.
3:12 minimum slope.
UL Rated for Impact, Fire and Wind.
G175s™
G175s™
G450s™
Snap Lock.
Major ribs are 1-3/4" tall.
18" nom coverage width. (12",14",16" inquire).
Uses a fixed clip.
Solid decking substrate required.
2:12 minimum slope.
UL Rated for Impact, Fire and Wind.
Approved for Weathertightness Warranties.
G150m™
G175s™
G150m™
Mechanical Seam.
Major ribs are 1-1/2" tall.
12" or 16" nominal coverage width.
Uses a fixed clip or floating clip per engineering.
Solid decking or span per engineering.
2:12 minimum slope.
UL Rated for Impact, Fire and Wind.
Approved for Weathertightness Warranties.
G200m™
G175s™
G150m™
Mechanical Seam.
Major ribs are 2" tall.
18" nom coverage width. (12",14",16" inquire).
Uses a fixed clip or floating clip per engineering.
Solid decking or span per engineering.
2:12 minimum slope.
UL Rated for Impact, Fire and Wind.
Approved for Weathertightness Warranties.

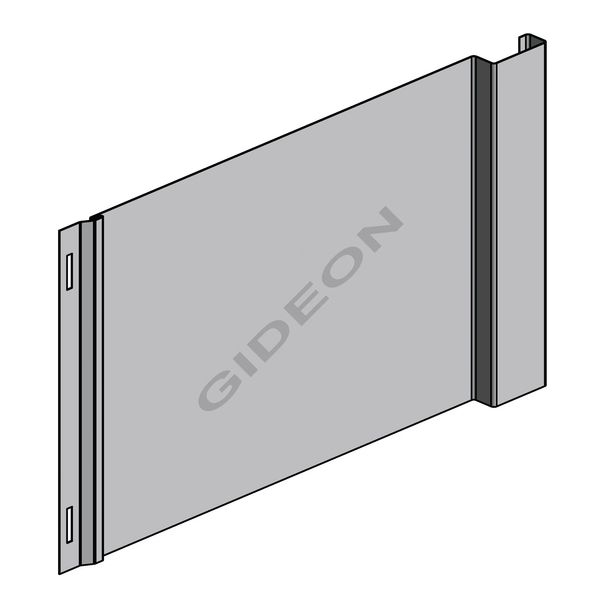

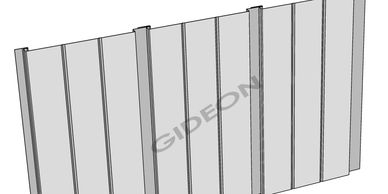

Gideon Board & Batten
Steel Siding
Traditionally, the board & batten style of paneling and siding involves placing thin strips of wood, called battens, over the joints of wide vertical boards. The battens cover the gaps between the boards, creating a rustic and chic look with strong vertical lines that add texture and shadows to the exterior of a home.
Gideon Board & Batten™ provides the B&B aesthetic with the durability and low maintenance of steel. Offering solid colors, textured colors and digital prints that appear to be wood planks, you can achieve the look you want while receiving the benefits of our long lasting steel product.
Attractive and long lasting
Gideon Board & Batten standard offering is 26 gauge thickness, 10" wide panel coverage, many colors of SMP paint system, bare Galvalume or variety of wood grain digital prints with PVDF resin.
Also available in 24 gauge thickness, 12", 16" or 20" width coverage.

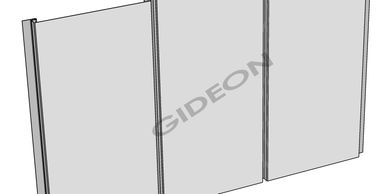

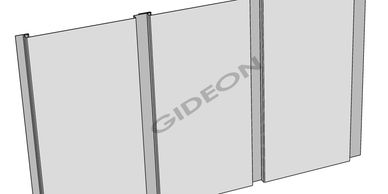

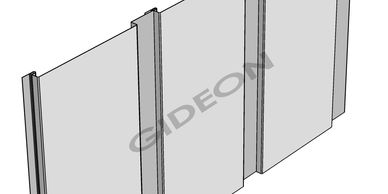

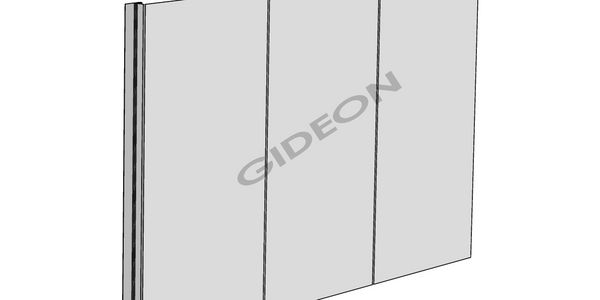

This rendering shows the installation of three adjacent panels.
Innovation
We are constantly pushing our efforts of continuous improvement to offer products that are not only high-quality but also meet the ever-changing needs of our customers.

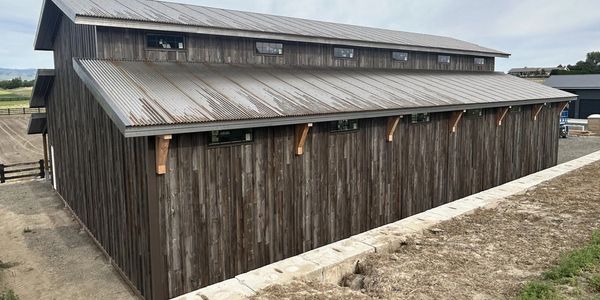

Steel or wood siding? It is steel with a digital print of aged barn wood. We have many wood grain prints. Call us to reserve your allocation.
The roof is Corten A606 which is a steel alloy that develops a stable surface layer of rust that actually provides protection and eliminate the need for painting.

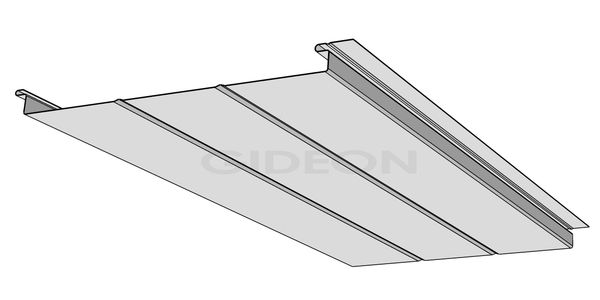

G12 Soffit
Surface Condition - with Beads
Surface Condition - with Beads
Surface Condition - with Beads
Panel is 1" tall.
12" nom coverage width.
No clip. Uses a Fastener Flange.
Solid decking substrate or span condition.
Surface Condition - Smooth
Surface Condition - with Beads
Surface Condition - with Beads
Panel is 1" tall.
12" nom coverage width.
No clip. Uses a Fastener Flange.
Solid decking substrate or span condition.
G12 FWP (Flush Wall Panel), smooth

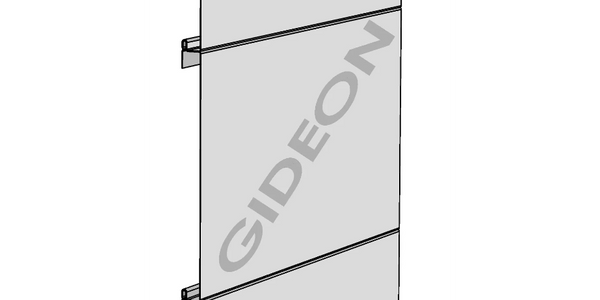

Horizontal Install, Smooth, No Reveal
Panel is 1" tall.
12" nom coverage width.
No clip. Uses a Fastener Flange.
Solid decking substrate or span condition.
Vertical Install, Smooth, No Reveal
Panel is 1" tall.
12" nom coverage width.
No clip. Uses a Fastener Flange.
Solid decking substrate or span condition.

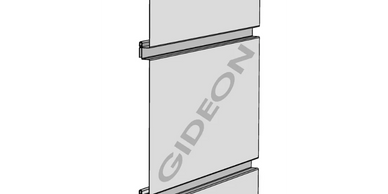

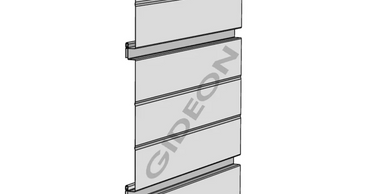

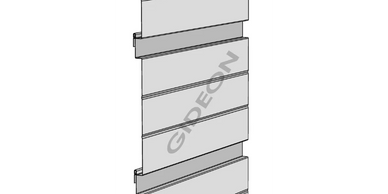

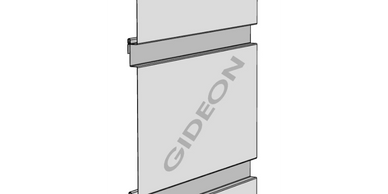

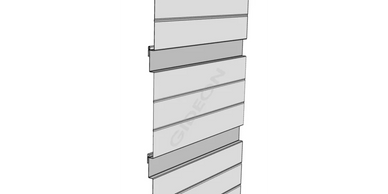

G12 FWP (Flush wall Panel) Horiztonal install
1" Reveal with Beads
1" Reveal with Beads
1" Reveal with Beads
2" Reveal with Beads
1" Reveal with Beads
1" Reveal with Beads
.
3" Reveal with Beads
1" Reveal with Beads
3" Reveal with Beads
.
1" Reveal Smooth
1" Reveal Smooth
3" Reveal with Beads
.
2" Reveal Smooth
1" Reveal Smooth
2" Reveal Smooth
.
3" Reveal Smooth
1" Reveal Smooth
2" Reveal Smooth
.

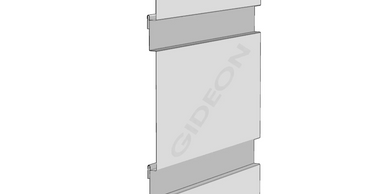

G12 FWP (Flush wall Panel) Vertical install
1" Reveal with Beads
1" Reveal with Beads
1" Reveal with Beads
.
2" Reveal with Beads
1" Reveal with Beads
1" Reveal with Beads
.
3" Reveal with Beads
1" Reveal with Beads
3" Reveal with Beads
.
1" Reveal Smooth
1" Reveal Smooth
3" Reveal with Beads
.
2" Reveal Smooth
1" Reveal Smooth
2" Reveal Smooth
.
3" Reveal Smooth
1" Reveal Smooth
2" Reveal Smooth
.
